The ranges

Our collection.

Four ranges, one standard of finish, priced for supply & install. Step into a range for its colours, details and documents.

Engineered timber, herringbone flooring, select-grade oak plank and laminate flooring, supplied across New Zealand and installed by one Auckland-based team. In Auckland we hold the lowest supply & install prices on every timber range we offer, and the price you compare here is the price you pay.

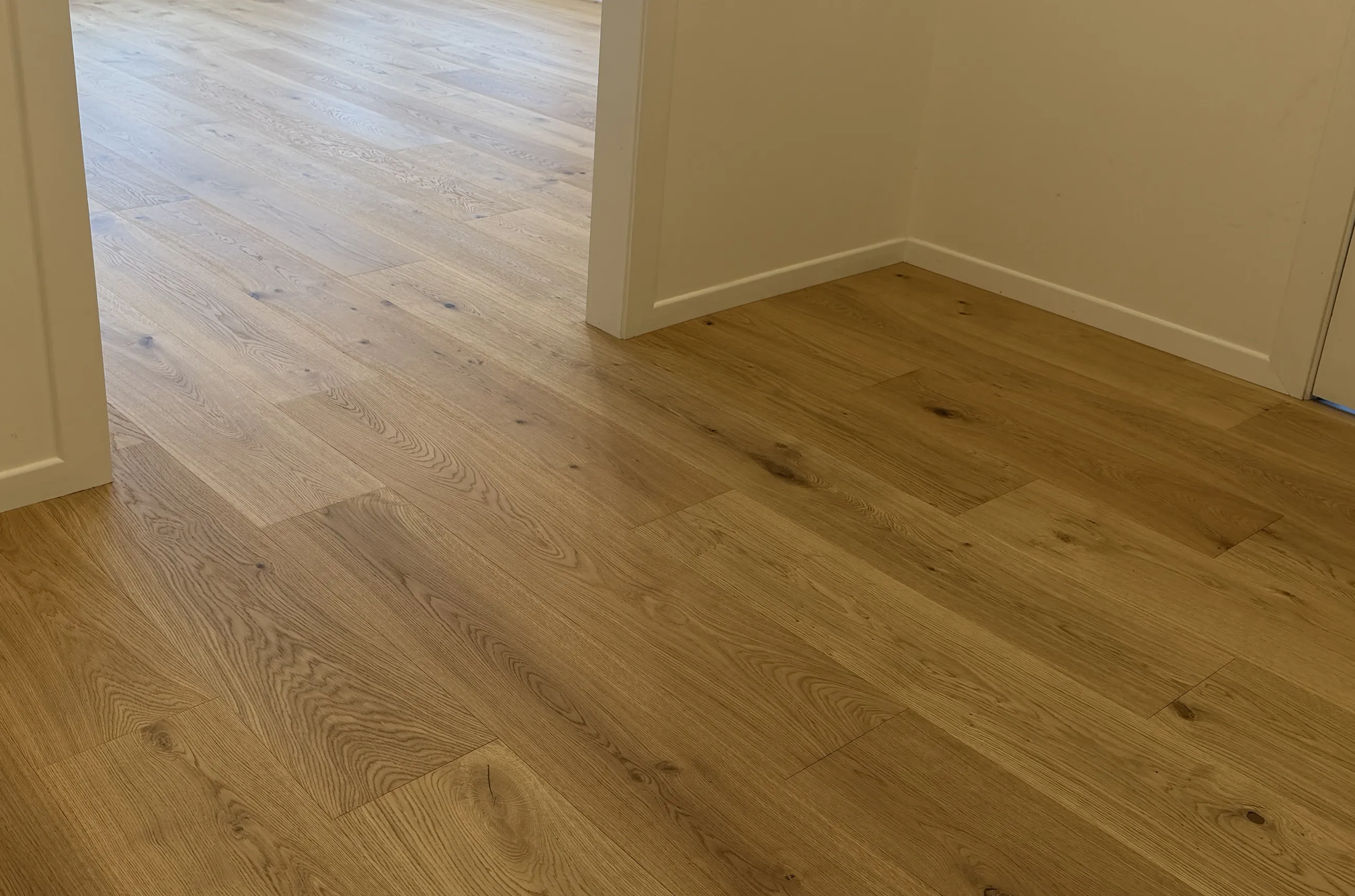

Sunlit ATS Timber engineered oak floor by a doorway
Engineered oak

ATS Timber

Engineered oak with a solid timber wear layer over a stable core, in 190mm and 260mm board widths. Built to hold its shape through New Zealand seasons.

$139/m² (190mm) · $179/m² (260mm)Supply & install · excl. GST

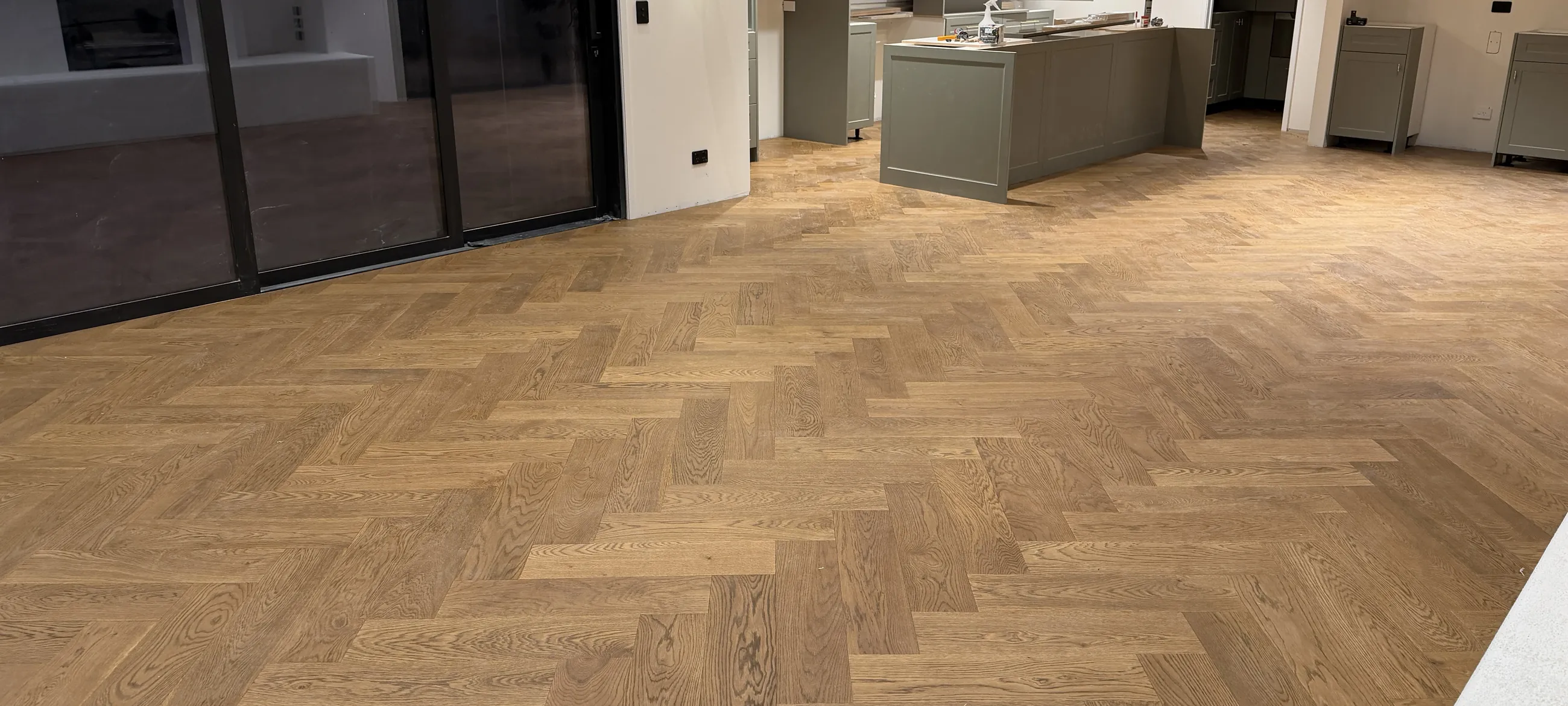

Herringbone oak floor across an open living space
Patterned oak

Herringbone

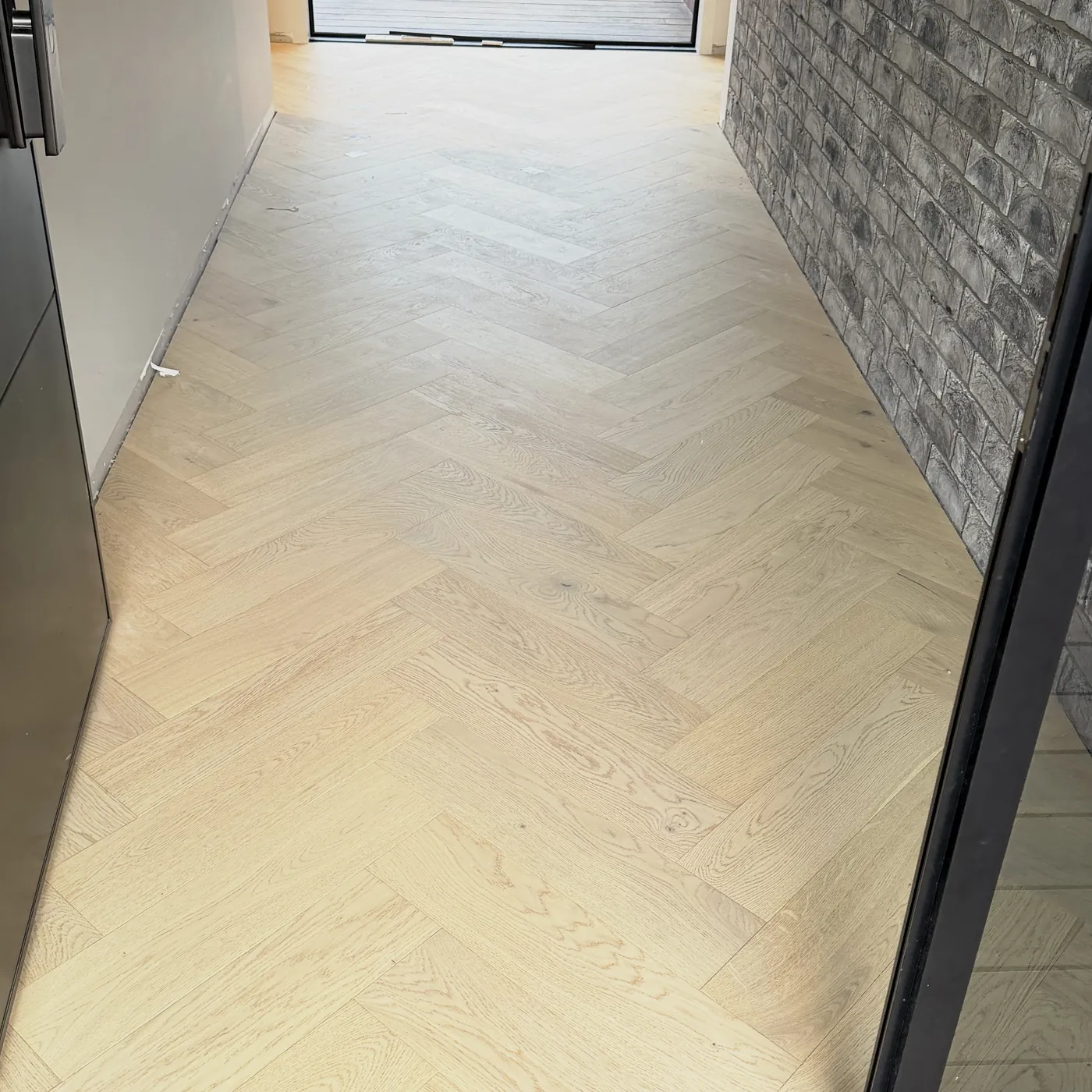

Engineered oak laid block by block, from whitewash through deep naturals. A specialist install that turns the floor into the room’s centrepiece.

$179/m²Supply & install · excl. GST

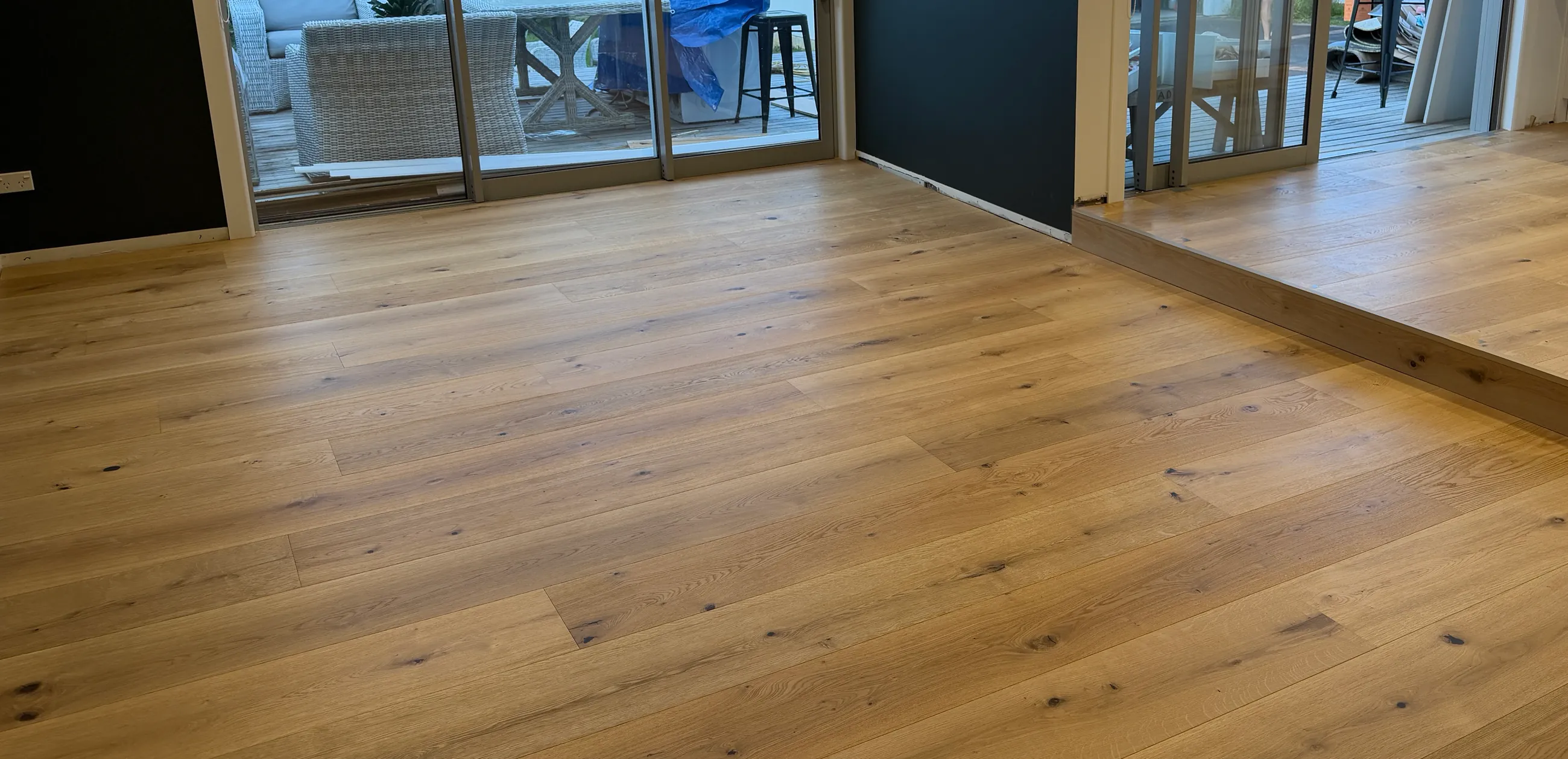

Select-grade oak plank floor with a step-up between rooms
Select-grade oak

Oak Plank

Oak boards cut from an exceptionally high grade of timber, so knots are few and far between. Long, clean lengths that calm a room down.

$139/m² (12mm) · $179/m² (15mm)Supply & install · excl. GST

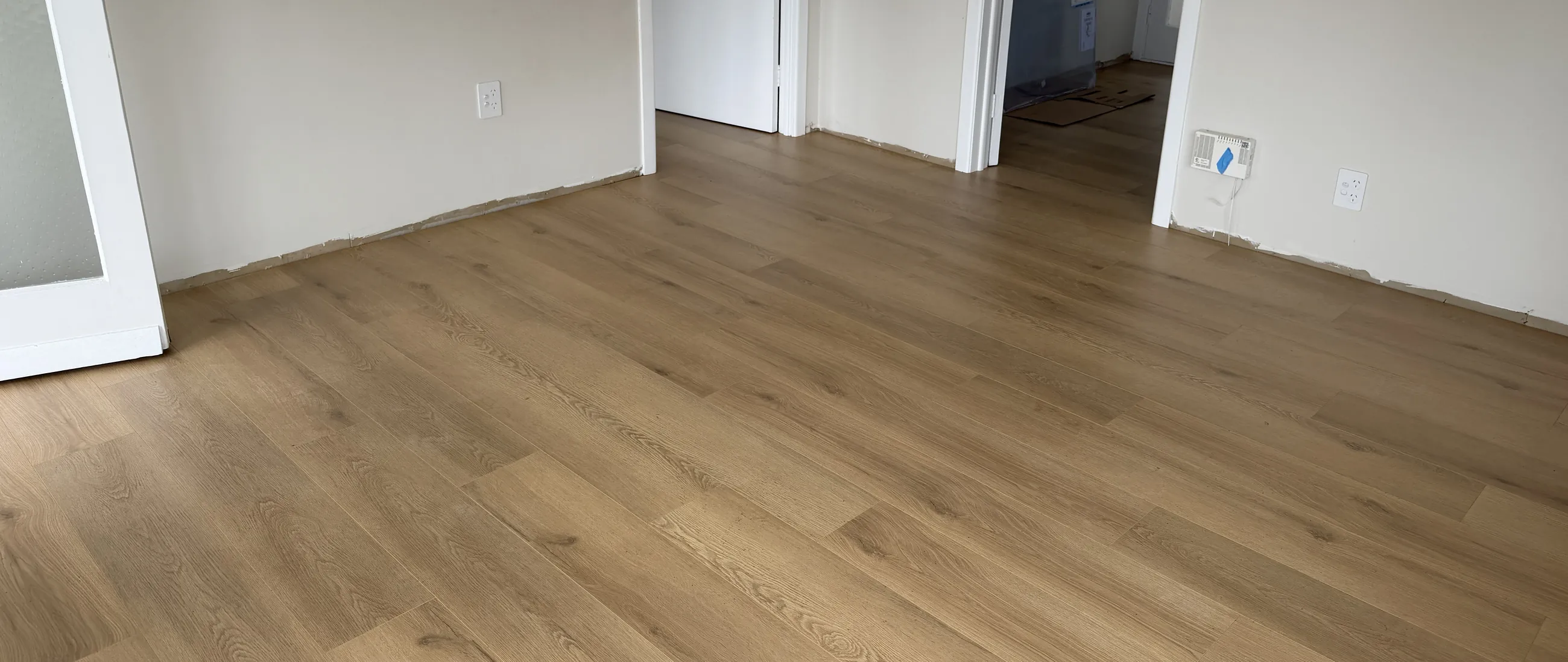

Laminate plank floor through connected rooms
Click-together

Laminate

Click-together planks over a dense core, with convincing timber looks. Hard-wearing, quick to lay, kind to the budget.

$75/m²Supply & install · excl. GST

Between floors

The staircase.

The same floor, step by step, wrapped by the team that laid it.

A staircase is the floor at its most visible, so we treat every step as its own small job. Each one is wrapped in the same timber as the floors it joins, finished with a stair nosing profile along the edge, and fitted with the specialised labour a staircase asks for.

Each step is priced individually, and the price covers the nosing profile, supplied and installed, together with that specialised labour. The timber itself is priced with the rest of your floor, so a staircase never hides in the quote.

$300/stepNosing profile and specialised stair labour · the timber is priced with the rest of your floor · excl. GST

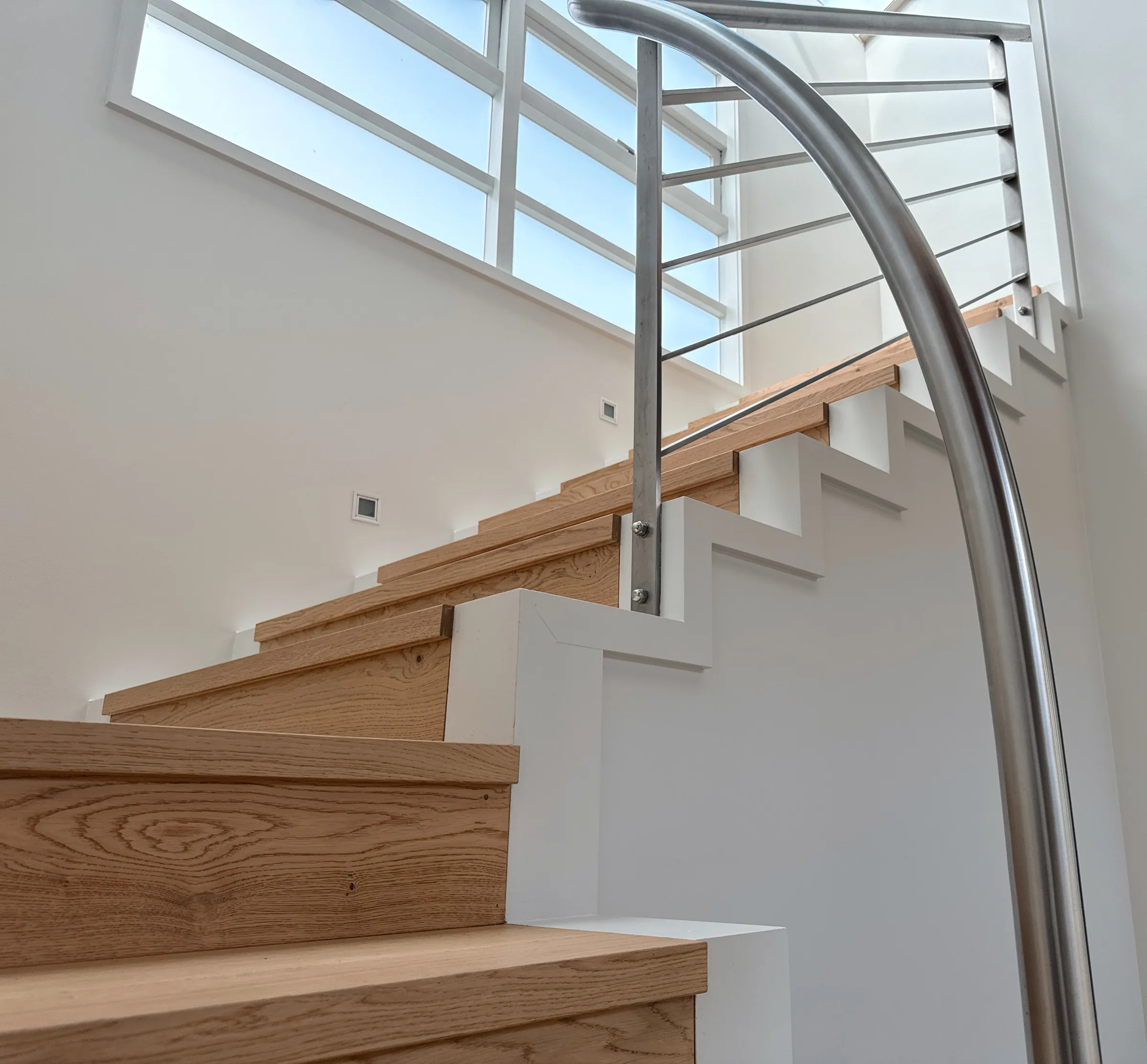

Stairs in the Oak Plank colour Western, with white risers and a curved steel handrail beneath a skylight, at Seacliffe Avenue, Belmont

Seacliffe Avenue · Belmont

The Oak Plank colour Western on every tread, climbing beneath the skylight.

The signature style

The L Channel Bar.

The most premium flooring combination we offer, and the slim line of metal that finishes it.

The signature style sets a herringbone field inside an oak plank picture frame, and the L Channel Bar draws the line between them. A slim metal channel, sitting flush with the boards, so the join looks deliberate instead of like a seam.

The same bar finishes any edge where our floor meets a different surface, from doorways to step-downs. Run as the signature trim it does its finest work: out in open floor there is no doorway to hide an edge, so every length is measured to the room, mitred at its corners, and inset flush with herringbone meeting one side and oak plank the other.

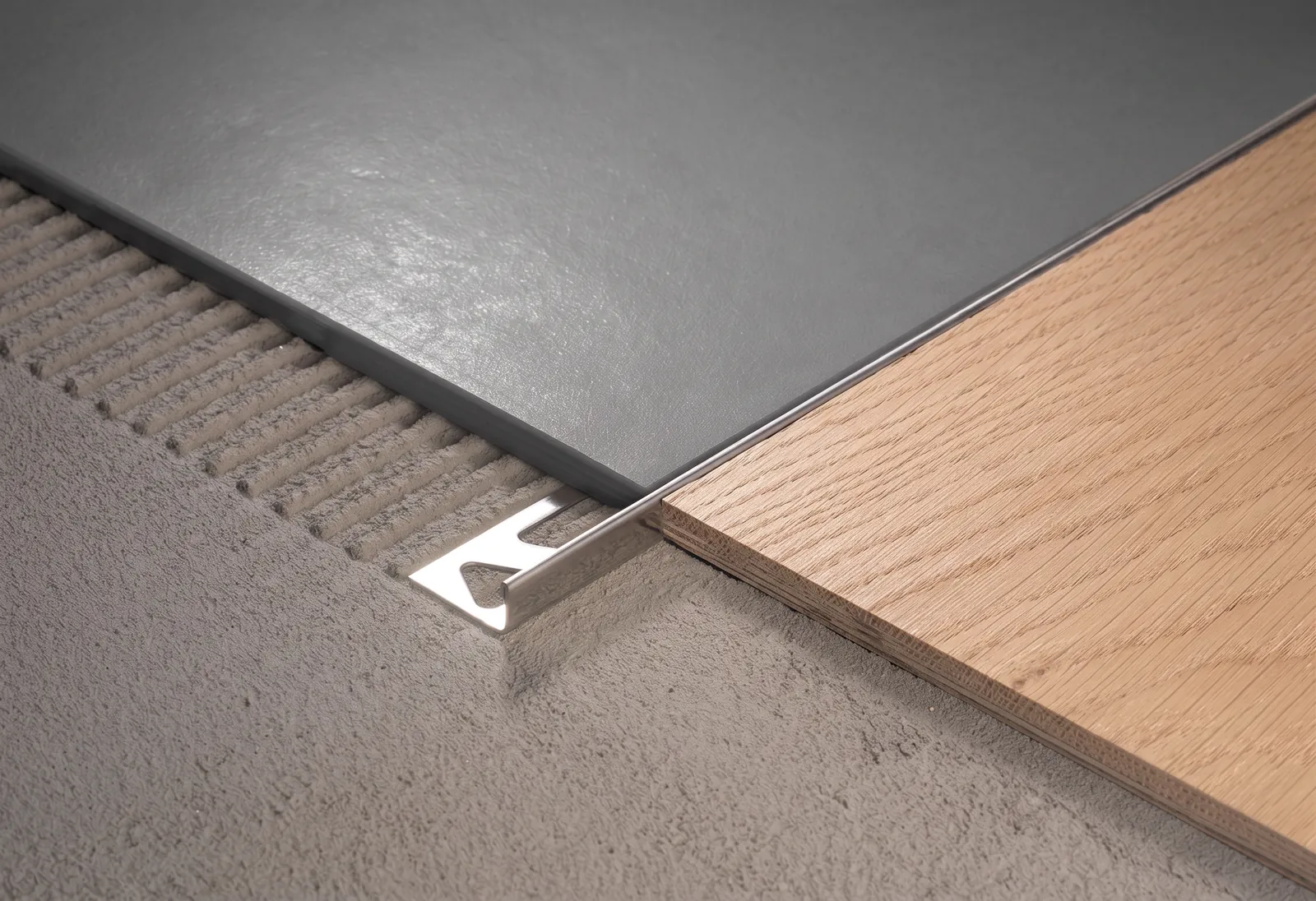

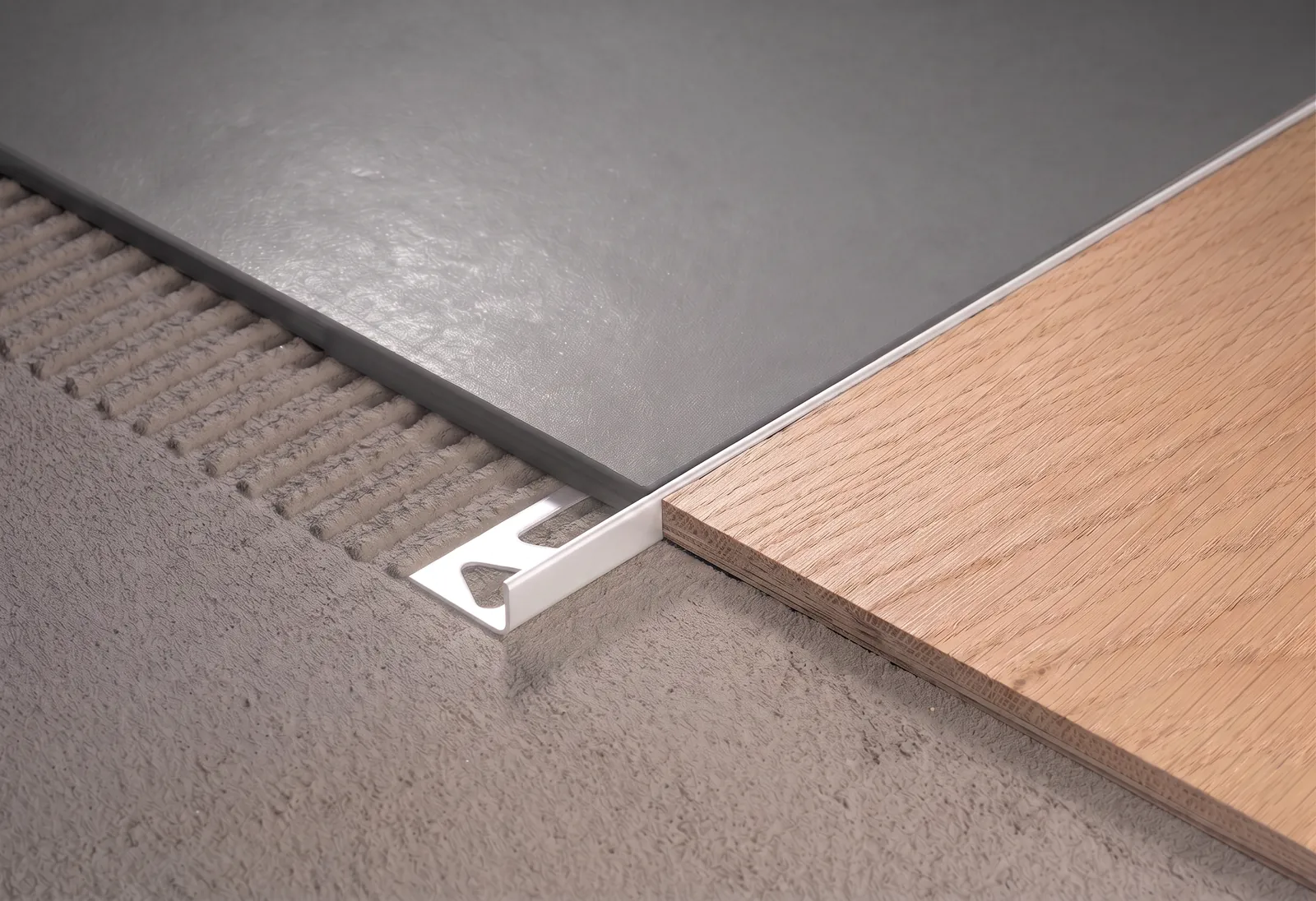

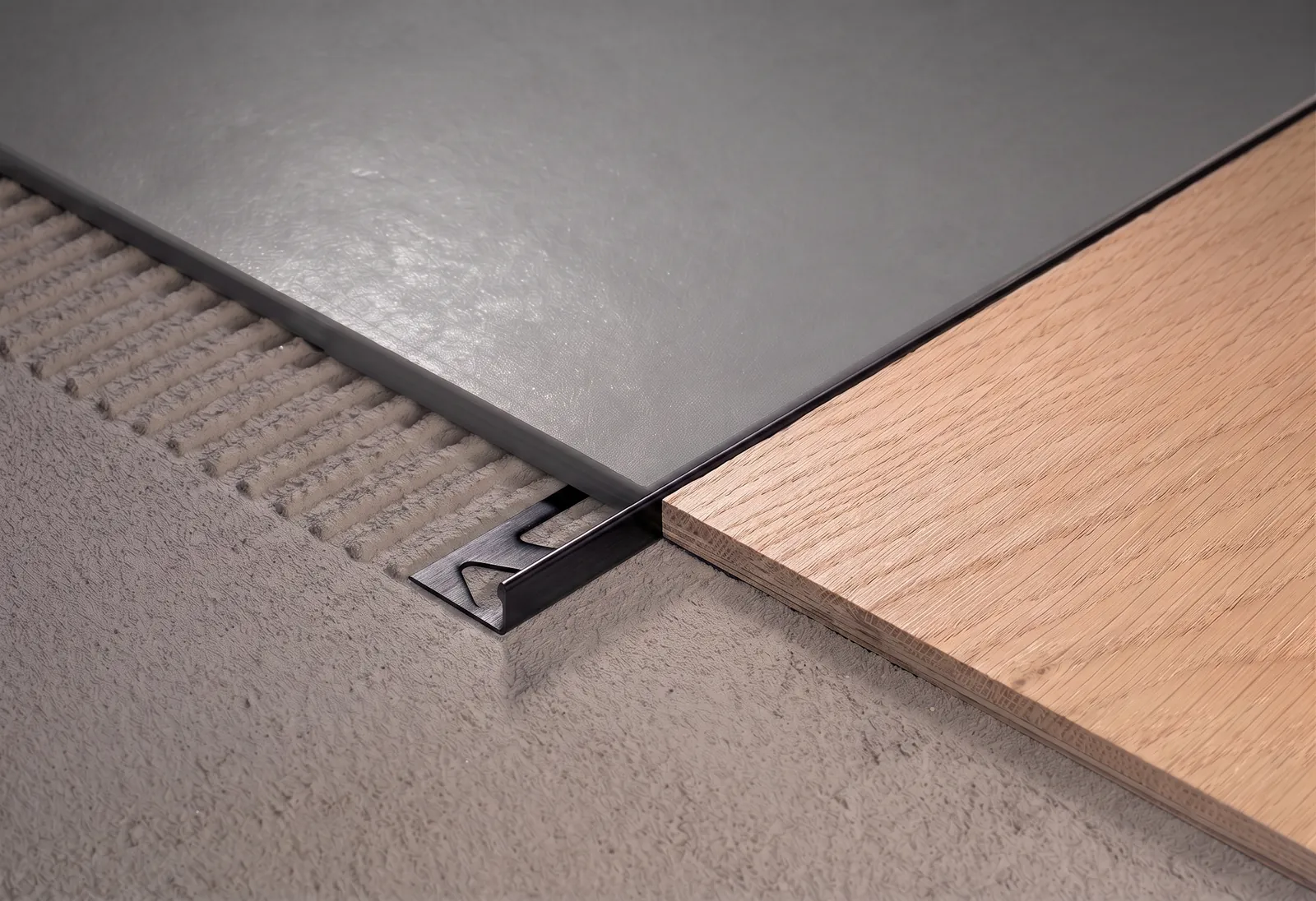

A polished silver L Channel Bar set flush into the floor where pale oak boards meet a dark grey surface The L Channel Bar in gold champagne The L Channel Bar in black The L Channel Bar in white

Gold Champagne is the finish most people choose, and like Silver it sits comfortably with every timber colour we lay. Black and White are the specialist picks: striking with the right floor, and worth holding against your chosen boards first to be sure the two colours work together.

Choosing

Which floor fits.

Everyday warmth

Solid oak underfoot in calm, generous boards. ATS Timber is the floor you live on barefoot.

The statement room

A specialist pattern that makes the floor the centrepiece. Herringbone is the one to choose.

For the perfectionist

Cut from an exceptionally high grade of oak, so knots are few and far between. Oak Plank is the cleanest look we offer.

Busy family homes

Hard-wearing, water-resistant and easy on the budget. Laminate handles the daily traffic.

After the install

Floor care.

Simple guides to keep every ATS floor looking its best, year after year.

Wet areas

Bathrooms, kitchens and the building code.

The building code counts kitchens, laundries and bathrooms as wet areas, and a timber floor there takes more than a nice finish. We install every range we sell in all three, the compliant way, with the paperwork to prove it.

The rule

Any room with a sink, bath or toilet counts as a wet area under clause E3 of the code, kitchens included since 2021. Floors there must be impervious and easily cleaned, and timber is no longer pre-approved for the job.

The pathway

The code allows what it calls an alternative solution: show the floor meets the requirement and it can be consented. We prepare that documentation for your building consent ourselves.

The system

Every joint is sealed watertight and a waterproof bead runs the full perimeter of the room. Under the boards, our engineered ranges are glued down on a MAPEI moisture barrier. Water stays on the surface until it is wiped up.

The proof

Our sealed joints were independently tested in New Zealand against 24 hours of water exposure and showed no penetration. Council has approved floors on this documentation, and the certificates are on hand if you want them.

Kitchens we have laid.

More of them live in our work.

Under the boards

The glue we lay on.

Every timber floor we install is bonded with MAPEI Ultrabond ECO 995, the gold standard adhesive in our industry, and it is already included in the price on your quote. Here is what it does and why we will not lay on anything less.

Three jobs, one trowel

ECO 995 is a moisture barrier, a sound reducer and a premium adhesive in a single application: a 100% solids, one component moisture curing urethane that carries a lifetime bond performance warranty from its maker. One product, laid once, doing the work of three.

Included in your price

The adhesive system is part of the number on every timber quote, not an extra. Using the all-in-one system reduces the risk of moisture related issues, minimises noise transfer, and gives the floor a secure, lasting bond: current best practice, priced in from the start.

For apartments

Where a body corporate asks for more, we add MAPEI’s Mapesonic soundproofing mat: recomposed cork and rubber, laid in the 4mm thickness for the best result. The mat is bonded to the subfloor with Ultrabond S955 1K, ECO 995 goes over the mat, and the boards go over that. Soundproofing is $55/m² excl. GST, with the mat and its adhesive both included in that number.

Beyond the floor

Painting & plastering.

A new floor is rarely the whole job. More often than not the project needs the painting and plastering trades too, so we offer both. Tell us what the rooms need and we will happily price the work on the same quote as your floor.

One quote, one team

Walls skimmed, ceilings repainted, skirtings finished once the boards are down: each service lands as its own line on your quote, priced up front and carried by the same team that lays your floor.

In the right order

Plaster wants to be dry before the paint goes on, and the paint wants to be done before a new floor goes down. When one team books the sequence, the trades never trip over each other, and the finish shows it.

Good to know

Common questions.

What is the difference between engineered timber and laminate?

Engineered timber, like our ATS Timber, Herringbone and Oak Plank ranges, bonds a solid oak wear layer to a stable core, so it is real wood underfoot. Laminate carries a wood-grain surface over a dense HDF core, which makes it the most affordable and one of the hardest wearing floors we offer.

Why we don’t do SPC

We used to. New Zealand summers taught us better: enough direct sun and the composite core starts to warp, and unlike engineered timber it can never be sanded back. Our laminate surpasses the average SPC in every metric that counts, and we supply & install it for less than SPC typically costs elsewhere.

Why engineered timber instead of solid timber?

An engineered board carries its solid oak where you see and feel it, over a stable core, so each tree goes much further. That is kinder on forests, and because more flooring comes from the same oak, the price comes down too. You give up nothing underfoot, and the board holds its shape through New Zealand seasons better than solid timber does.

Is engineered timber waterproof?

We prefer the honest phrase “water-resistant”: timber is a natural material, and anywhere claiming waterproof is not being upfront with you. Our timbers fall under the Alternative Solution pathway of the New Zealand Building Code’s E3 clause and are approved for wet areas such as kitchens, laundries and bathrooms. They still need looking after; our floor care guides and each range’s warranty spell out what that means.

Do the prices include installation?

Yes. Every flooring price on this page covers both supply and install, which few flooring companies offer as one number. In Auckland we hold the lowest supply & install prices on every timber range we offer. Prices are shown excluding GST, which is added as its own line on your quote, and a full quote can also add delivery and finishing trims, such as L Channel Bars where our floor meets a different surface.

What is the metal strip between two floors called?

In our work it is the L Channel Bar, a slim metal transition strip that sits flush where one floor ends and another begins. It comes in Silver, Gold Champagne, Black and White, and it is the same bar that draws the line between herringbone and oak plank in our signature style.

What is the ATS Design signature style made of?

Three parts, laid by one team: an Oak Plank picture frame running the room’s edge, the L Channel Bar drawing a clean metal line inside it, and a herringbone field filling the centre. You can see the combination in full in the signature style gallery on our homepage.

How does the free measure and quote work?

Tell us about your space and we will come to your home, measure it, and build a digital floorplan so you can preview your new floor in your own rooms. Then we come back with a firm quote. It is free, and there is no obligation to go ahead.

Which floor copes best with pets and busy family life?

ATS Timber is the one we point busy households to. Its eight coats of brushed lacquer make the surface hardy and scratch resistant, and the solid oak wear layer keeps its looks under claws, toys and traffic. Our floor care guides cover the few habits that keep any range looking new.

Do you work outside Auckland?

We primarily operate across Auckland, Northland and Hamilton, and we have approved installers throughout the rest of New Zealand. Wherever you are, talk to us about your project.

Side by side

Compare the ranges.

The parts of the specification sheets that decide most choices. The full sheets live with each range.

ATS TimberHerringboneOak PlankLaminate
Price · excl. GST
ATS Timber$139 or $179/m²
Herringbone$179/m²
Oak Plank$139 or $179/m²
Laminate$75/m²
Board size
ATS Timber190 × 1900 or 260 × 2200mm
Herringbone150 × 600mm
Oak Plank190 × 1900 or 240 × 2200mm
LaminateFive sizes, up to 1845mm
Thickness
ATS Timber14 or 15mm
Herringbone15mm
Oak Plank12 or 15mm
Laminate12mm
Top layer
ATS Timber3 or 4mm solid oak
Herringbone4mm French oak
Oak Plank2 or 4mm genuine oak
LaminateWood-grain on HDF core
Finish
ATS Timber8 coat brushed lacquer
Herringbone7 coat lacquer, brushed
Oak Plank7 coat lacquer, ultra matte
LaminateWaxed, ultra matte
Water resistance
ATS TimberYes
HerringboneYes
Oak PlankYes
LaminateYes, up to 48 hours
Underfloor heating
ATS TimberYes
HerringboneYes
Oak PlankYes
LaminateYes
Emissions rating
ATS TimberE1
HerringboneE0 equivalent
Oak PlankE0 equivalent
LaminateE0 equivalent
Joining
ATS TimberT&G
HerringboneT&G
Oak PlankT&G
LaminateUnilink click

Two prices means two board formats. Figures come straight from each range’s specification sheet.

The shortlist

Let’s get the right floor under your feet.

Tell us which range keeps catching your eye, or let us help you choose. Either way, we’ll come back with a plan and a price.
